Kleenoil Bypass Filter Systems





The Kleenoil Bypass Filter System is a bypass oil filtration system that passes only a small portion of the total oil flow through a very dense filter cartridge at about 2 to 3 quarts per minute. At this speed, it is possible to remove particles down to 1 micron (3 absolute) and remove 99.95% of all water, greatly decreasing engine wear and prolonging oil life. Kleenoil can eliminate water and particle contamination, extend oil life up to 5 times and hydraulic oil up to 10 times, reduce engine wear and component wear, dramatically reduce downtime, remove particles down to 1 micron (3 absolute), and is applicable to engines as well as hydraulic systems.

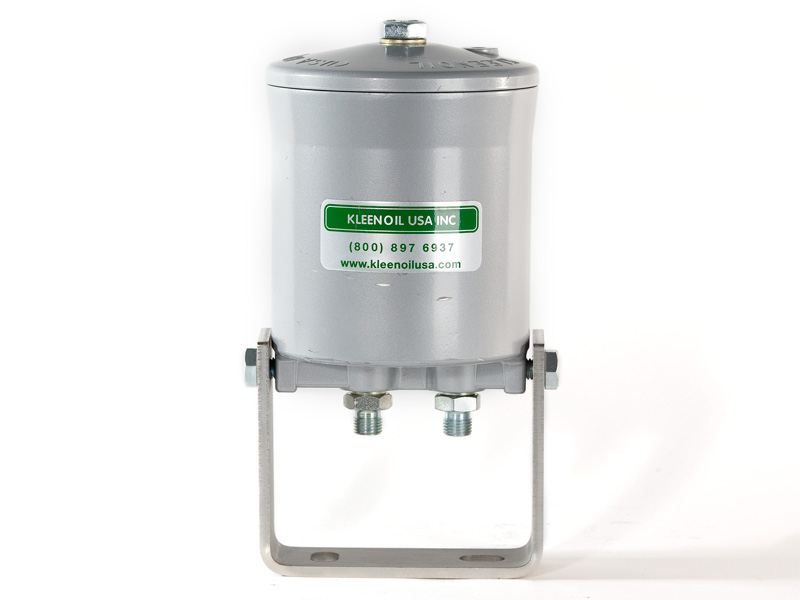

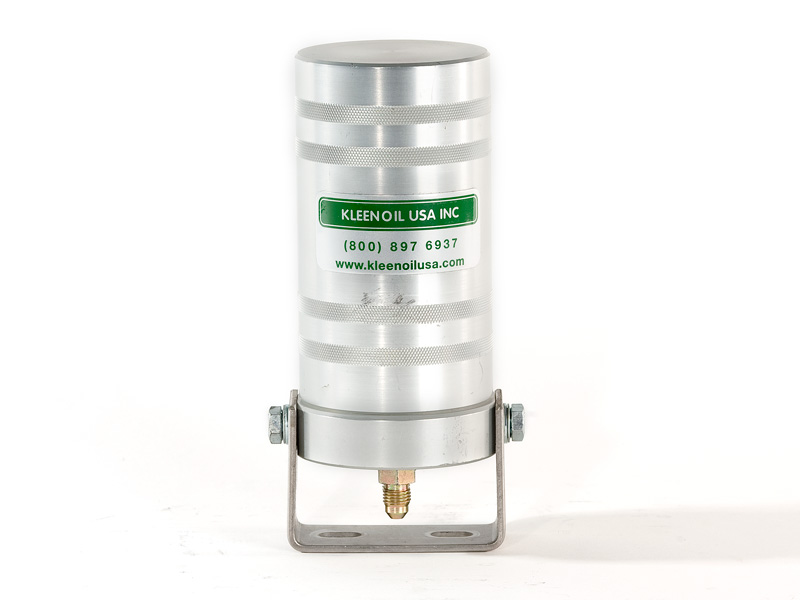

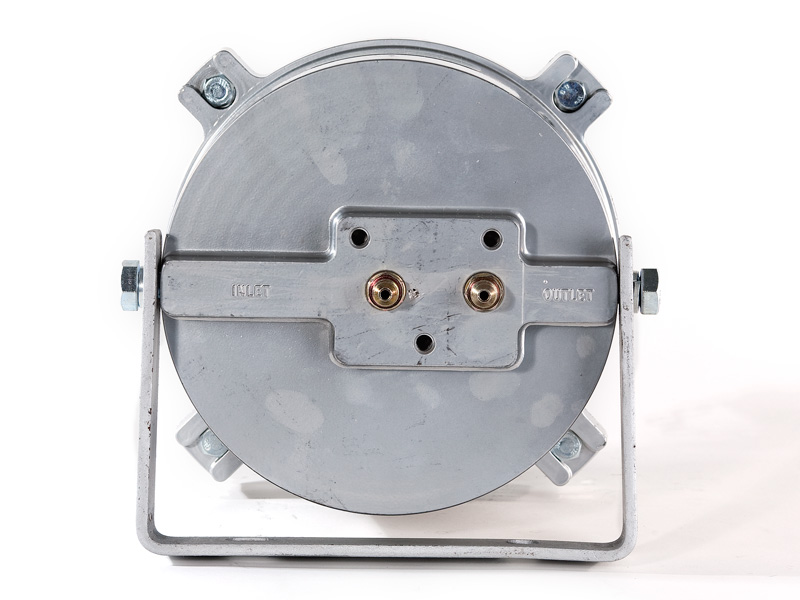

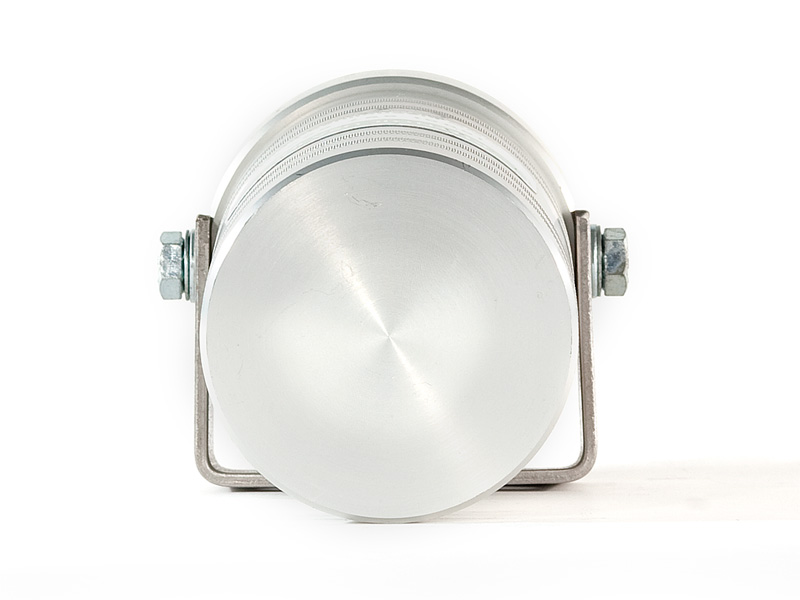

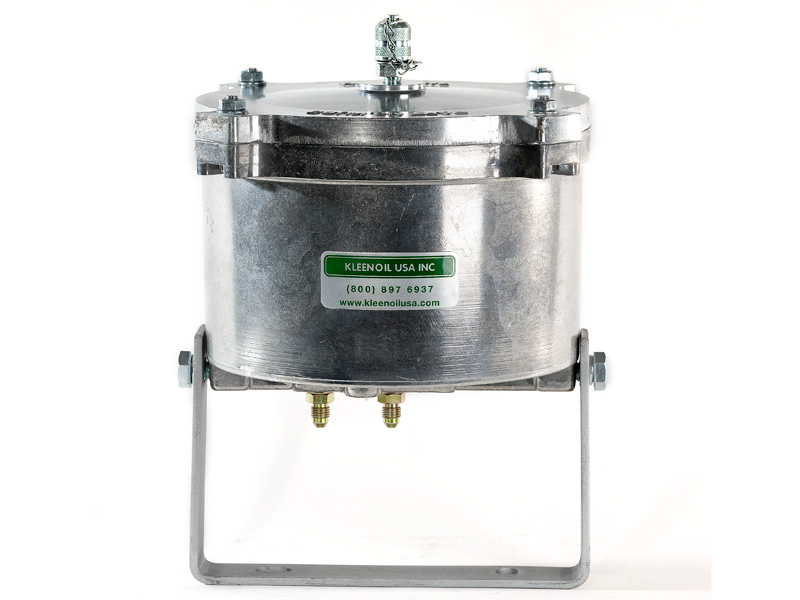

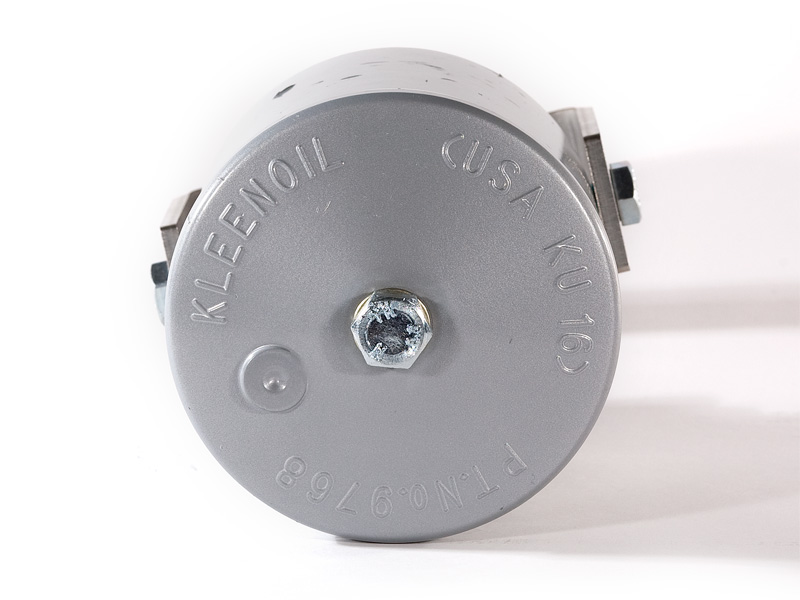

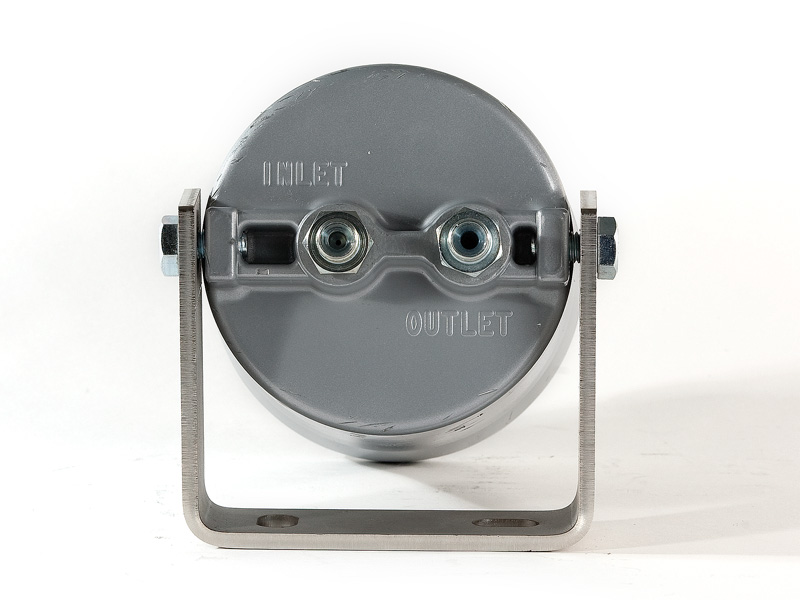

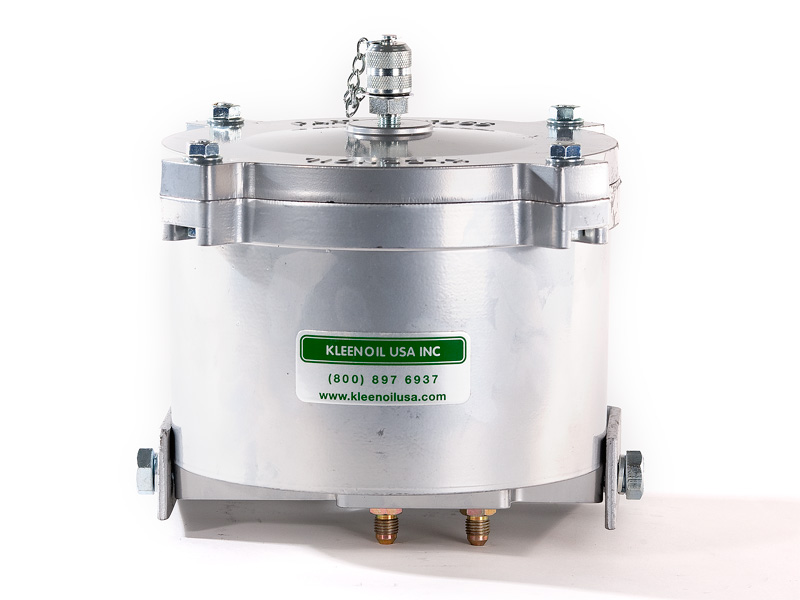

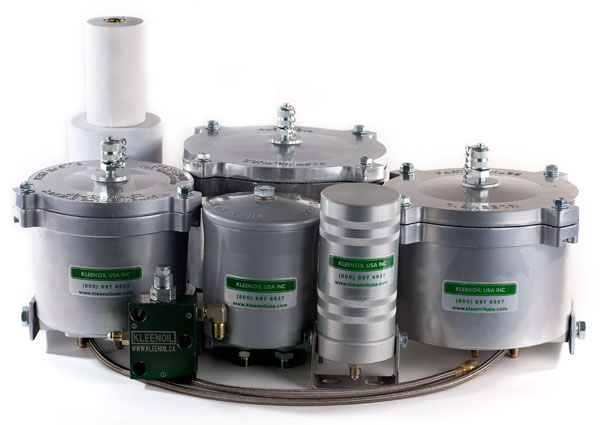

The Kleenoil USA filtration unit is made of cast aluminum with a galvanized steel mounting bracket. There are five basic sizes, which are installed according to the applications table below. It is connected to the engine lubricating oil circulating system in a bypass loop using high pressure braided hose and fittings to SAE standards.

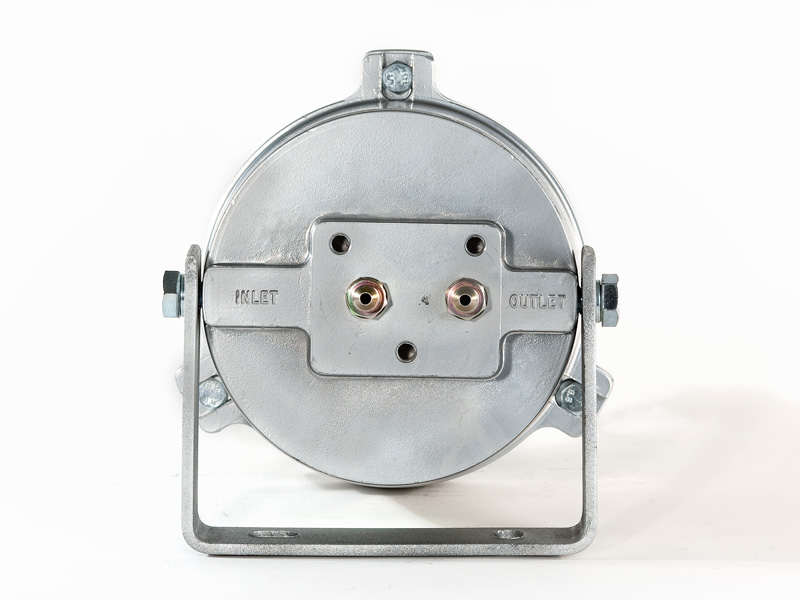

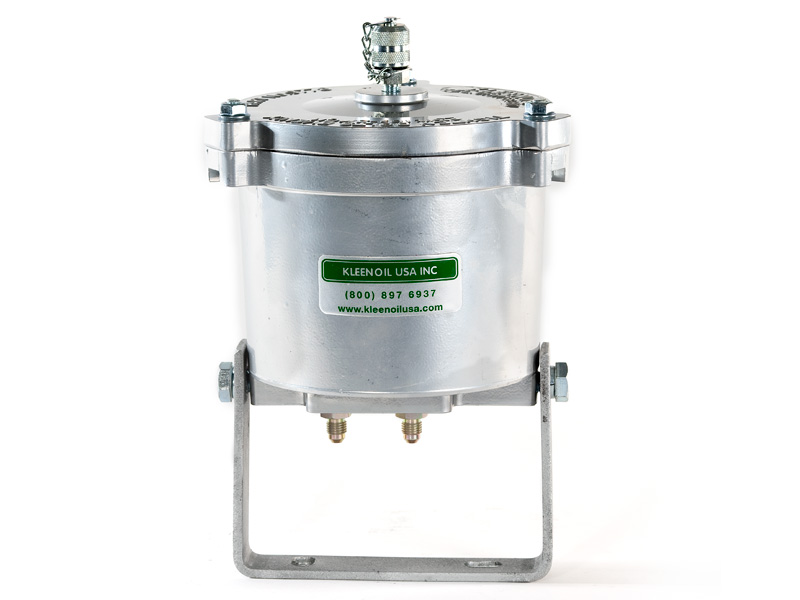

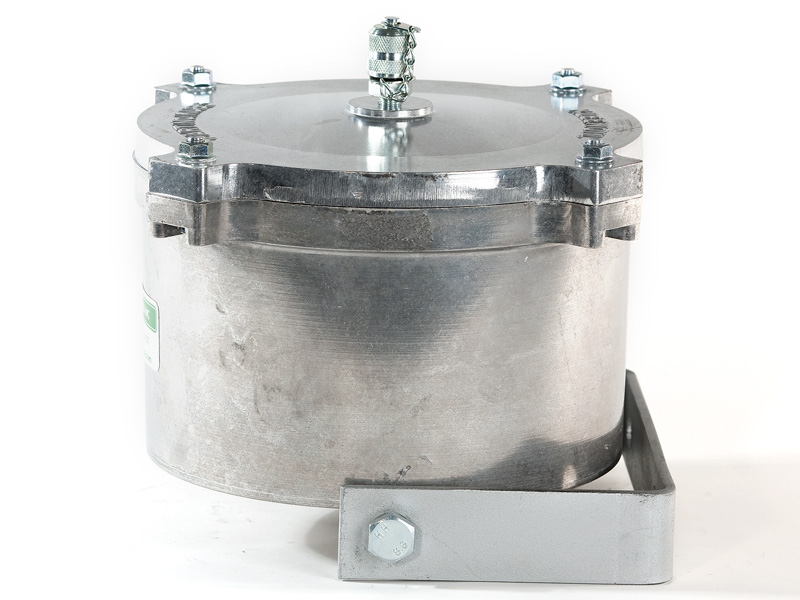

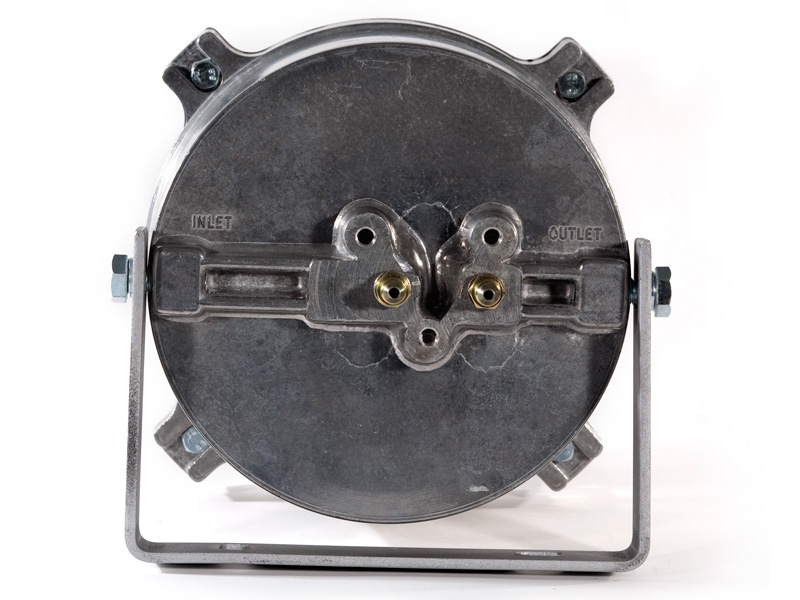

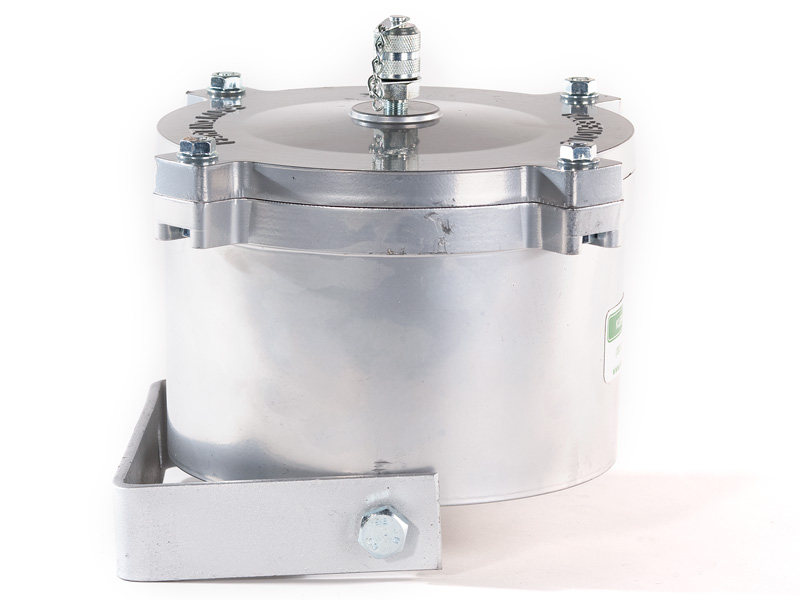

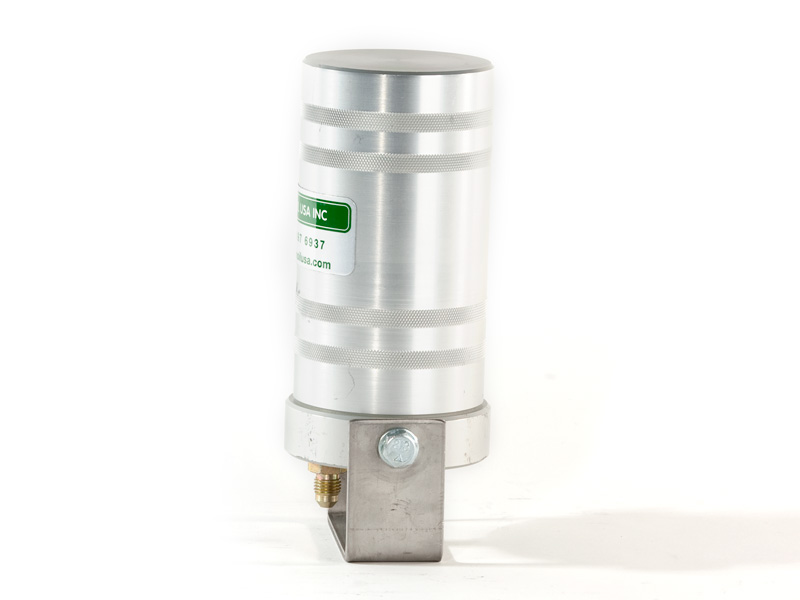

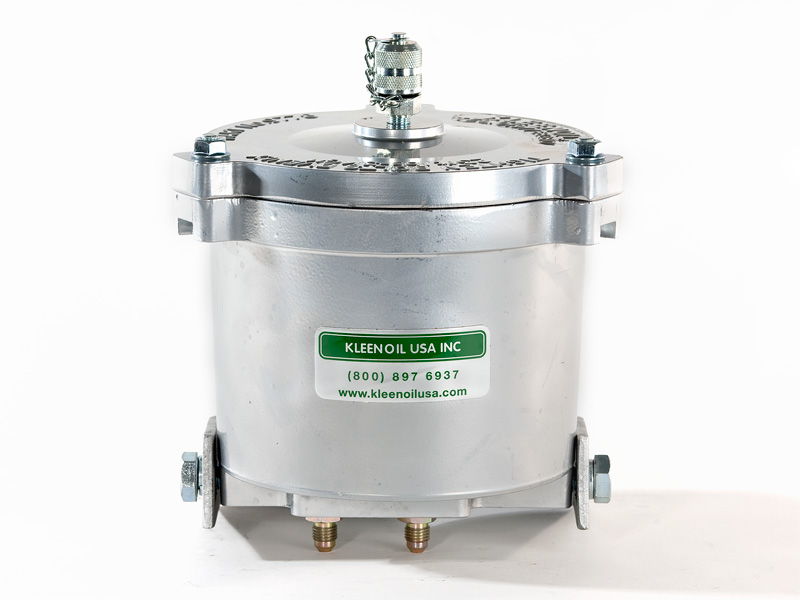

  KU06 KU16 KU50 KU65 KU85

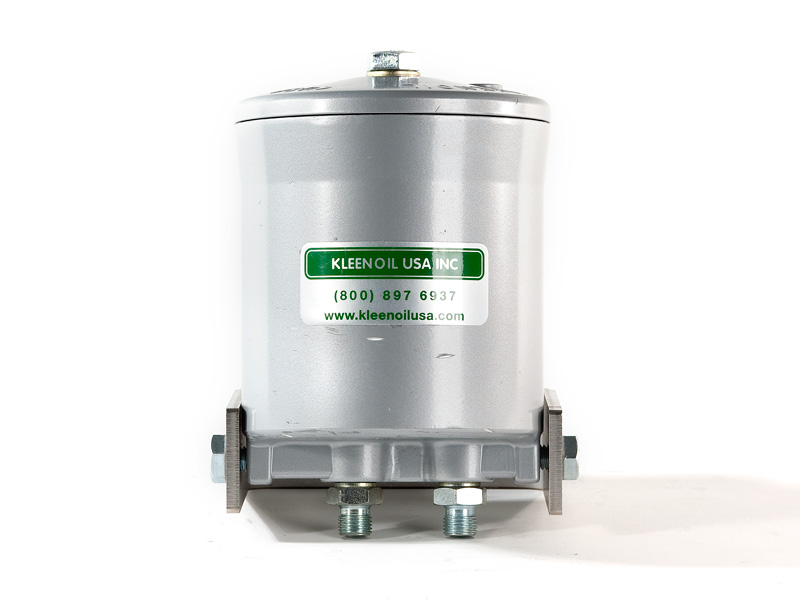

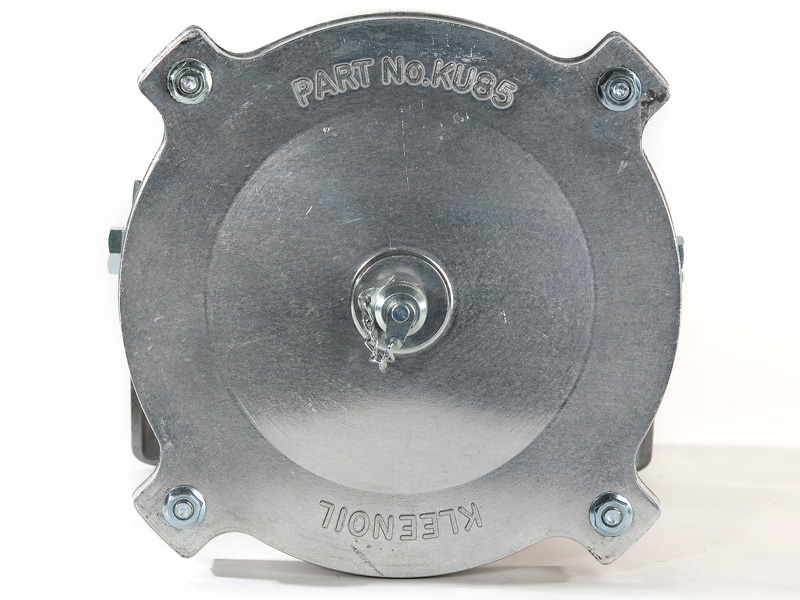

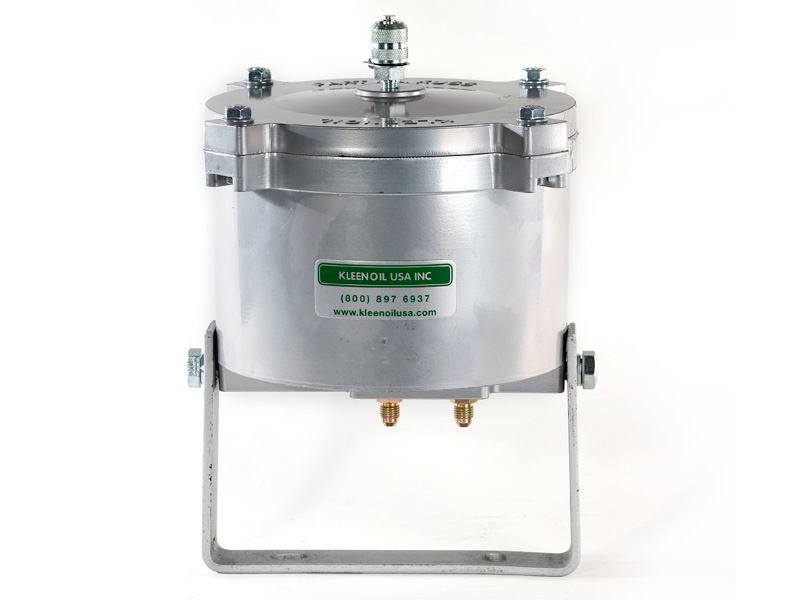

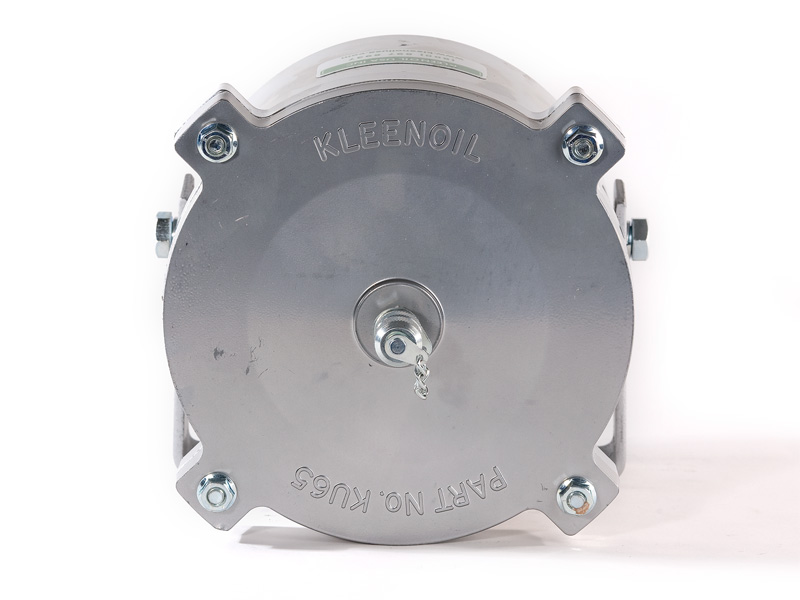

Photo Gallery

Engine
Sump
Capacity

 Up to 6 Quarts Up to 16 Quarts Up to 50 Quarts Up to 65 Quarts Up to 85 Quarts
Hydraulic Tank Capacity None Up to 60 Gallons Up to 200 Gallons Up to 300 Gallons Up to 400 Gallons
Water Retention <0.05% 0.026 Gallons 0.07 Gallons 0.12 Gallons 0.20 Gallons 0.26 Gallons
0.104 Quarts 0.28 Quarts 0.48 Quarts 0.80 Quarts 1.04 Quarts
Height 6.125 inches 6.25 inches 6.25 inches 6.5 inches 6.75 inches
15.558 cm 15.875 cm 15.875 cm 16.51 cm 17.145 cm
Diameter 3.00 inches 4.63 inches 7.25 inches 9.50 inches 10.0 inches
7.62 cm 11.76 cm 18.415 cm 24.13 cm 25.4 cm
Weight 4.1 lbs 6.5 lbs 8.1 lbs 10.2 lbs 13.1 lbs

Kleenoil Benefits

  • Eliminates Water
  • Removes Dirt and Contaminants
  • Doesn't Remove Desirable Elements
  • Extends Drain Intervals
  • Reduces Time Needed for Service
  • Continuous Protection Provided
  • Good for the Environment
  • Reduces Costs of Labor

Kleenoil Advantages

  • Single Canister Design
  • Multi-Bolt Lid Design
  • Large Surface Area Filter
  • No Electrical Hookup
  • Simple Installation
  • No Internal Moving Parts
  • Lifetime Warranty
  • 30 Year Proven Track Record





Lifetime Warranty

Kleenoil USA Inc. warranties the Kleenoil filter housing and brackets to the original purchaser for life!

Edan Farms Testimonial

Edan Farms has been using PowerUp for over 20 years in all our Semi-tractors. We have been a contractor for Fedex Ground running from 20-30 rigs nearly every day. Each truck travels over 200,000 per year.

One of the first things we noticed when we started using PowerUp is that our engines run cooler. Since using PowerUp, we have not had to overhaul an engine in less than 1 million miles and most we haven't overhauled in less than 1.4 million miles. When we do take the engine apart, it is always very clean, and wear is extremely minimal. In 20 years, we have not had a single differential gear failure due to lubrication.

With PowerUp, we extended our oil drains to 30,000 miles and could have probably run further if we had chosen to.

About 10 years ago, because of your presentation on KleenOil Filtration, we started adding these filter units to our engine. With the continuous purification of the oil and complete removal of water, we now have been able to extend oil drains to well over 300,000 miles per rig. We still sample each engine every 30,000 miles and have been very impressed with the condition of the oil even after these extended oil drains. We have never had an issue due to lubrication with any of the engines.

PowerUp and Kleenoil have saved us thousands upon thousands of dollars in oil changes, engine repairs and overhauls. Presumably, though we have never collected the data, we have saved thousands in fuel costs because the engines maintain their efficiency due to very low wear.

I personally maintain our engines and I am a believer in these products because I have seen the results. I would recommend them to anyone. Please feel free to have anyone call if they have any questions.

Eric Schafer
Edan Farms, Inc.
Maintenance Supervisor
330-770-7746

PORTUS INTERMODALES, SA DE CV Testimonial

"We have 15 new buses from Volkswagen that we installed both the Kleenoil oil bypass filter system for the engine oil and and Kleenfuel fuel bypass filter systems on for the diesel fuel system.  There has been a big push as of late on environmental issues in Sonora, Mexico by the State Governor Claudia Pavlovich.  We feel that Kleenoil and Kleenfuel really have a positive impact on the environment.  With both systems installed on each bus, the fuel economy has increased from 2.2 km per liter to 2.7 km per liter.  This is a 22.7% increase in fuel economy!  The 15 buses currently outfitted with both systems are now saving $11,500 USD per month on diesel fuel and $19,500 USD per year on oil change costs.  Furthermore, on lubrication we are now saving 80% on lubricants and down time.  This savings directly impacts our bottom line and is a great benefit to the environment due to the fact that we are now recycling our oil and burning cleaner fuel!  Our plan is to keep outfitting our fleet with Kleenoil and Kleenfuel products until we have 100% of our fleet outfitted with both systems.  The people from COMSA are handling the cartridge changes for us as well as the oil sampling that is sent to the third party lab for testing.  We have been very pleased with the results!"

Lic. Enrique Medesigo Vite, General Manager, Sonora, Mexico



Energy Drilling Testimonial

"We were changing our engine oil on our drilling rigs every 250-500 hours depending on the type of engine.  When we tested the new Kleenoil filter system, we still had good oil at 5000 HOURS and made the decision to use the Kleenoil filter systems on all of our engines. We now change our oil at 2000 hours and have extended our oil life 8 times.  Based on ISO standards, our oil at 1000 hours is better than new oil.  One big question is how this affects warranties?  None of these practices will affect our warranty."

Pat Burns, Jr, General Manager Energy Drilling Company, Natchez, MS

Villeneuve Tank Lines Testimonial

"Prior to installing the Kleenoil filter, we used to change the main and rod bearings on our Tandem Milk Trucks at approximately 200,000 kilometers due to the effect of the liquid load shifting band forth in the tank with no baffles. Now we do not bother to check the bearings until we do an in frame because there is very little wear on them. On our Long Distance Highway Tractors we do not look at or change the rod and main bearings as we used to do in the past."

Glen MacDonald, Villeneuve Tank Lines
